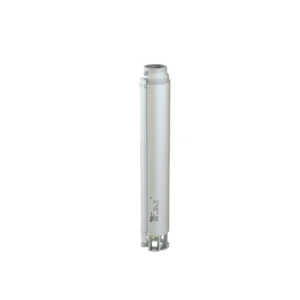

FB6R 6” Submersible Electropumps Noryl Impellers

The FB6R range of 6” submersible pumps is for clean water
in 6’’ DN150 wells.

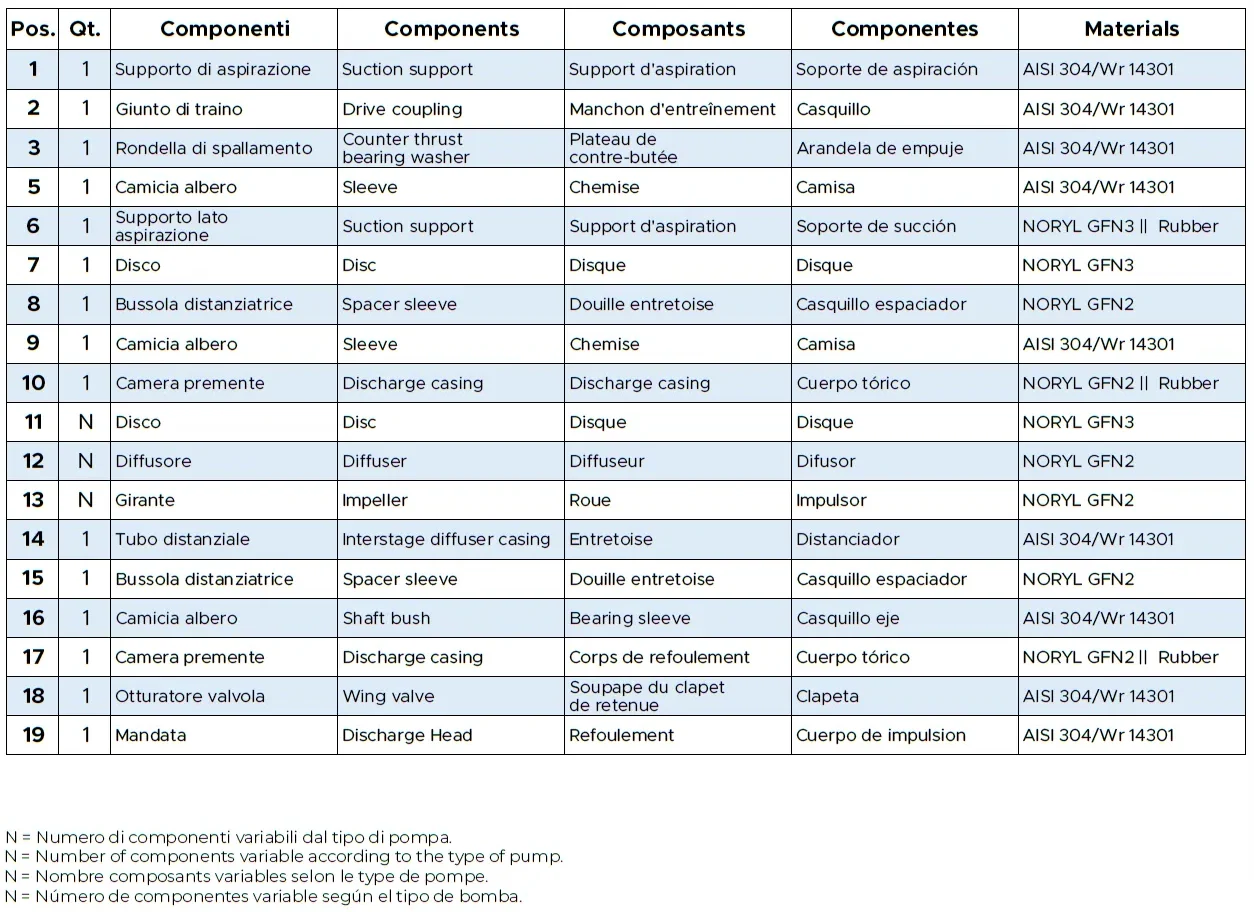

The discharge port and suction support are made of precisioncast
AISI 304 stainless steel.

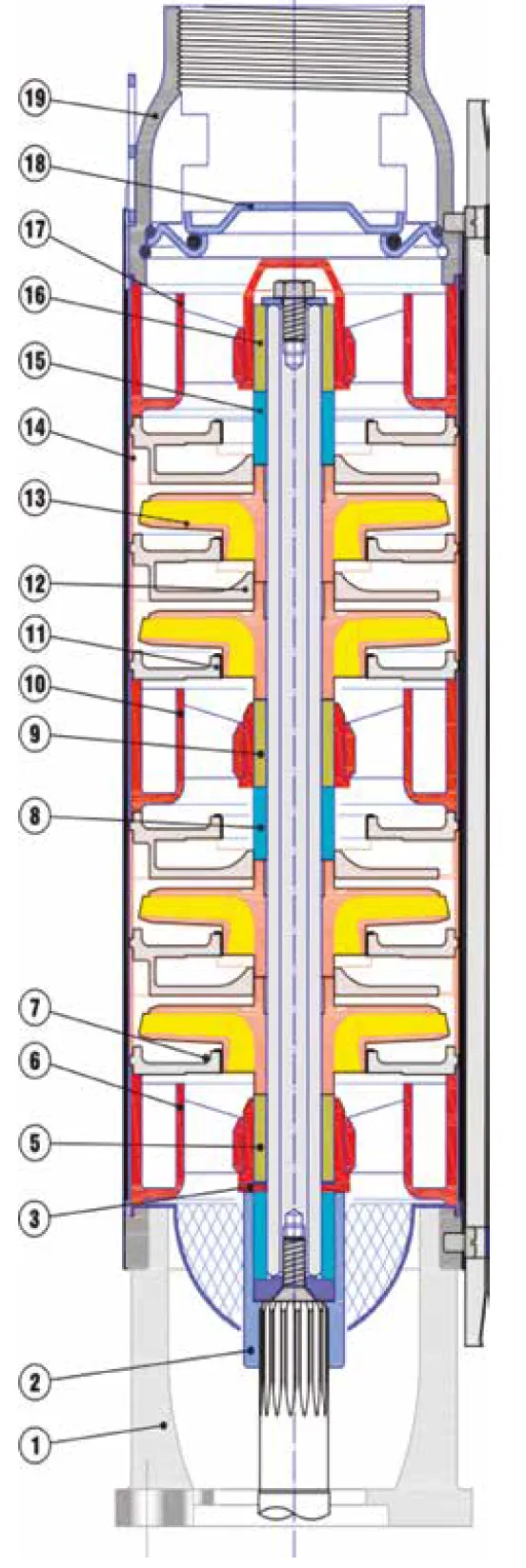

To ensure higher pump safety at great depths (over 40 bar),
a new system has been developed to reduce the pressure on
the impellers. In this case, each pump consists of two delivery
bowls assembled in series, identified as model FB6R…/…D.

Applications:

• Agriculture
• Fire prevention
• Water supply
• Pressure increase
• Irrigation

Specifications:

• Maximum flow rate: 1050 l/min
• Maximum head: 842 metres
• Maximum power: 45 kW
• Maximum overall diameter: 145 mm (including the cable guard)
• Maximum water temperature: 35°C (for the pump only, see the motor catalogue for the motor)
• Maximum sand content: 60 g/m3
