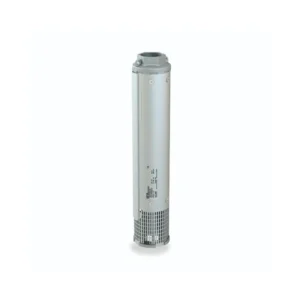

FB6RX 6” Radial-flow Submersible Electropumps made of pressed Stainless Steel

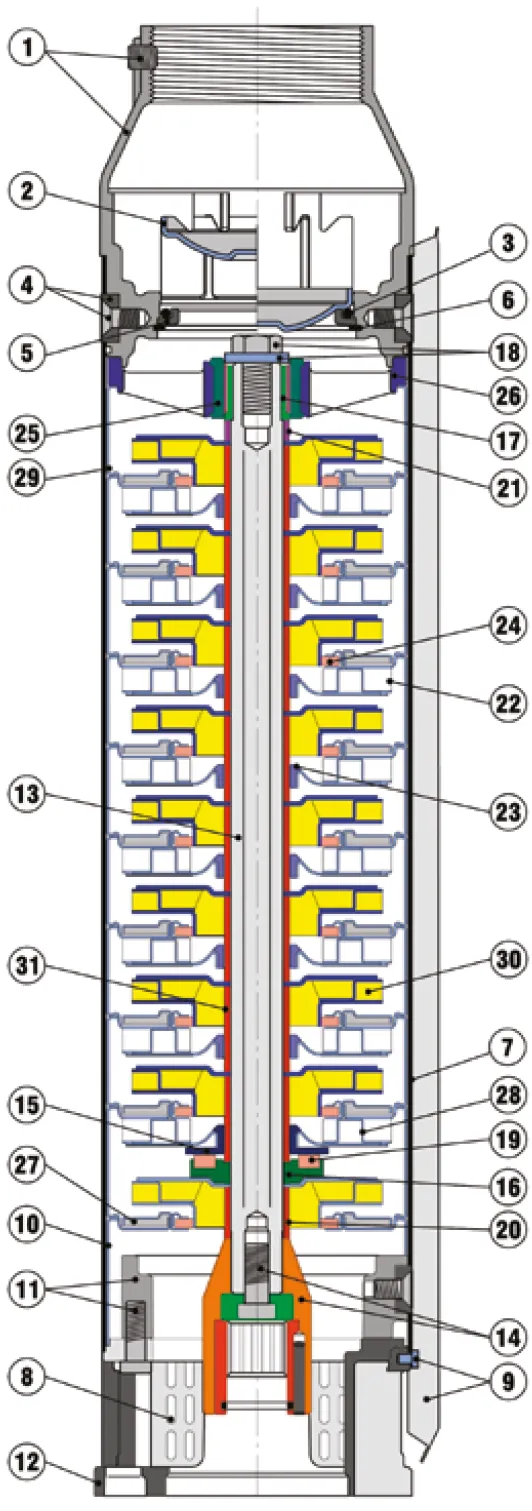

A structure made entirely from stainless steel with an outer sleeve ensures that all components are aligned and, combined with floating PTFE neck rings, ceramic journal sleeves and fluted rubbed bearings, makes the pump body more durable.
The range has been designed to ensure high efficiency with lower energy consumption and therefore costs

Applications:

• Drinking water
• Aggressive and corrosive water
• Seawater
• Brackish water
• Thermal and sulphurous water
• Agriculture
• Fire prevention
• Harsh applications: mining
• Water supply
• Pressure increase
• Desalination and osmosis
• Industry
• Irrigation
• Special solutions
• Various industrial sectors: food, petrochemical, steel and marine

Specifications:

• Maximum flow rate: 667 l/min
• Maximum head: 700 metres
• Maximum power: 45 kW
• Maximum overall diameter: 145 mm (including the cable guard)
• Maximum water temperature: 90°C (for the pump only, see the motor catalogue for the motor)
• Maximum sand content: 100 g/m3

Optional:

Available on request:
+ Double cable guard

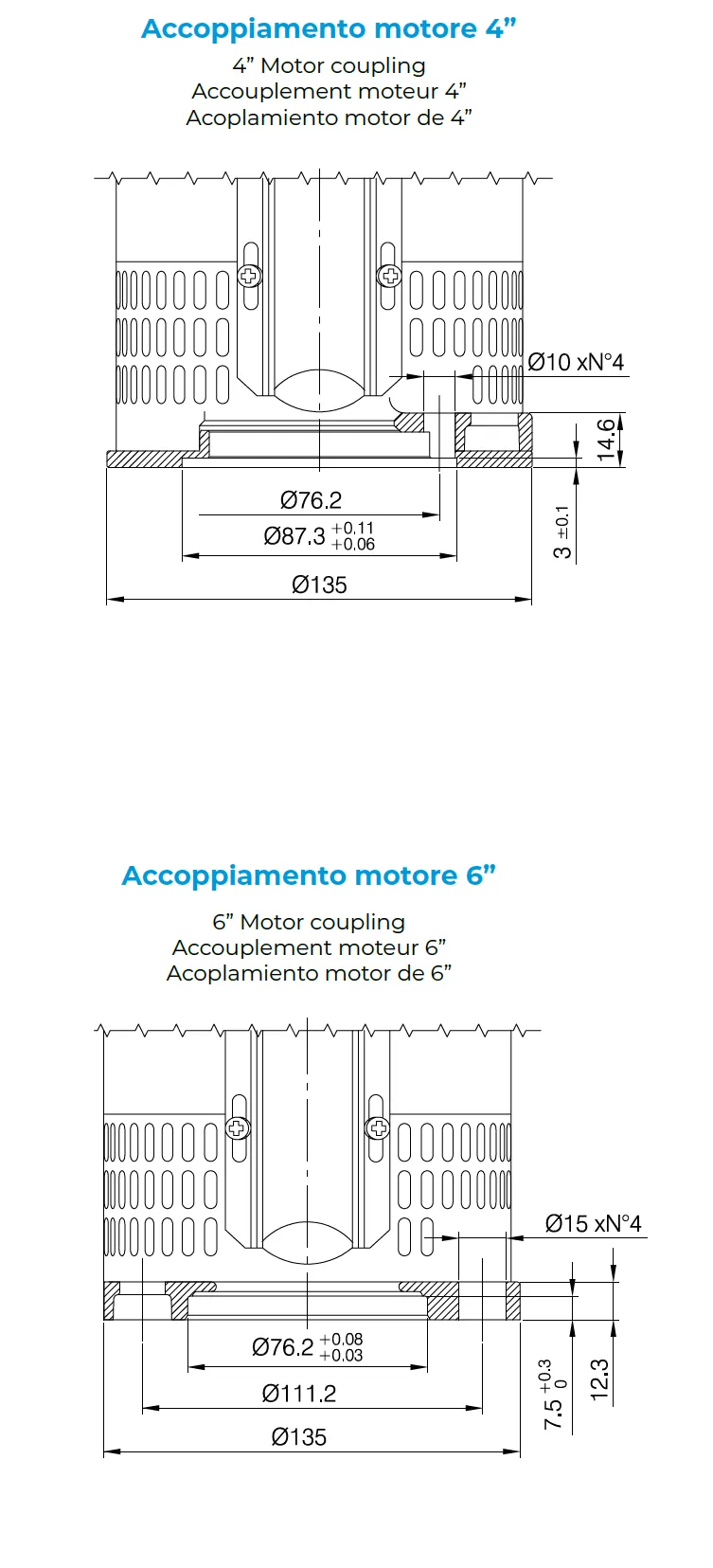

+ 4” NEMA motor coupling
+ 8” NEMA motor coupling
