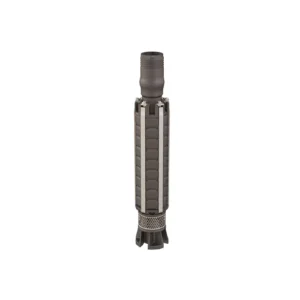

FB8R 8” Radial-flow Submersible Electropumps made of Cast Iron

The FB8R range of 8” radial-flow pumps made of cast iron
is for clean water in 8’’ DN200 wells.

The special feature of radial-flow pumps is that they are made
up of stages with limited axial size. This means they can provide
high heads with medium-low flow rates.
Cast iron impellers make this range robust, so the pumps can
be installed in deep wells to ensure high efficiencies while
guaranteeing the highest safety levels.

APPLICATIONS
» Agriculture
» Fire prevention
» Water supply
» Pressure increase
» Industry
» Irrigation

SPECIFICATIONS
» Maximum flow rate: 1333 l/min
» Maximum head: 858 metres
» Maximum power: 92 kW
» Maximum overall diameter: 198 mm (including the cable
guard)
» Maximum water temperature: 60°C (for the pump only, see
the motor catalogue for the motor)
» Maximum sand content: 30 g/m3

OPTIONAL
Cast iron delivery bowls can be supplied on request:
+ with impellers made of GCuSn10 (B10) bronze
+ with impellers made of AISI 316 stainless steel
