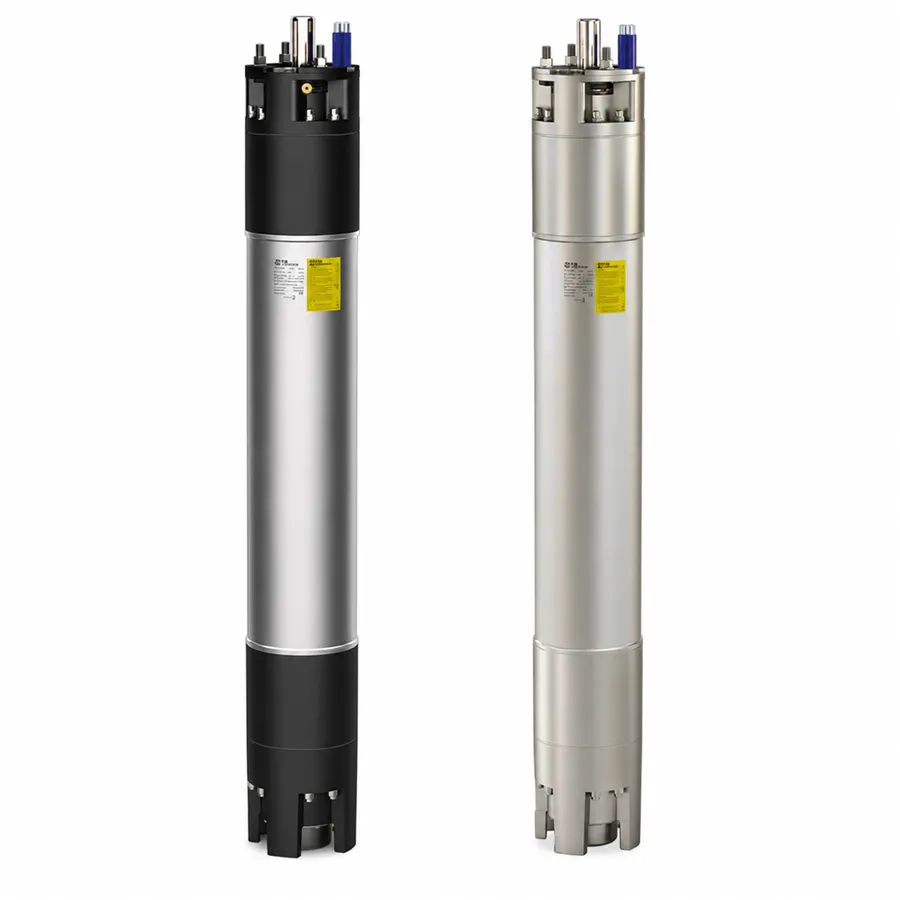

10F FB Submersible Motors

From 59kW to 190kW

FLANGE 10”

PROTECTION RATING  IP68

INSULATION CLASS :

– Y (PVC version)
– F (PE2+PA version)
– F (HT version)

NUMBER OF STARTING EACH HOUR   MAX. 10

Installation VERTICAL OR HORIZONTAL (170kW and 190kW motor no horizontal)

50-60Hz VOLTAGE TOLERANCE: -10% / +10%   [Un (400V-10% = 360V)   (400V+10% = 440V)]

MINIMUM COOLING RATE: 0,15m/s

INSTALLATION BELOW THE WATER LEVEL UP TO 500m

MAX. STORAGE TEMPERATURE -15°C / +60°C

MOTOR CABLE (WRAS, KTW, ACS APPROVED) FOOD GRADE 0.6 / 1kV
