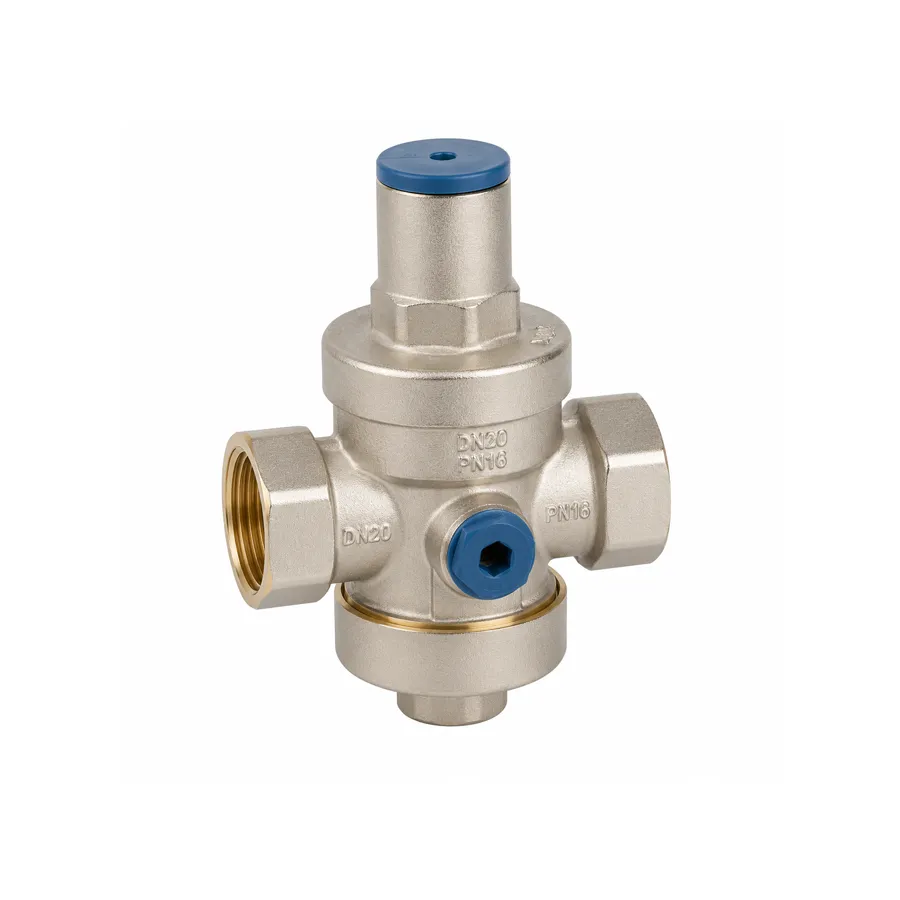

3318 REDUX GE Pressure reducer valve with piston

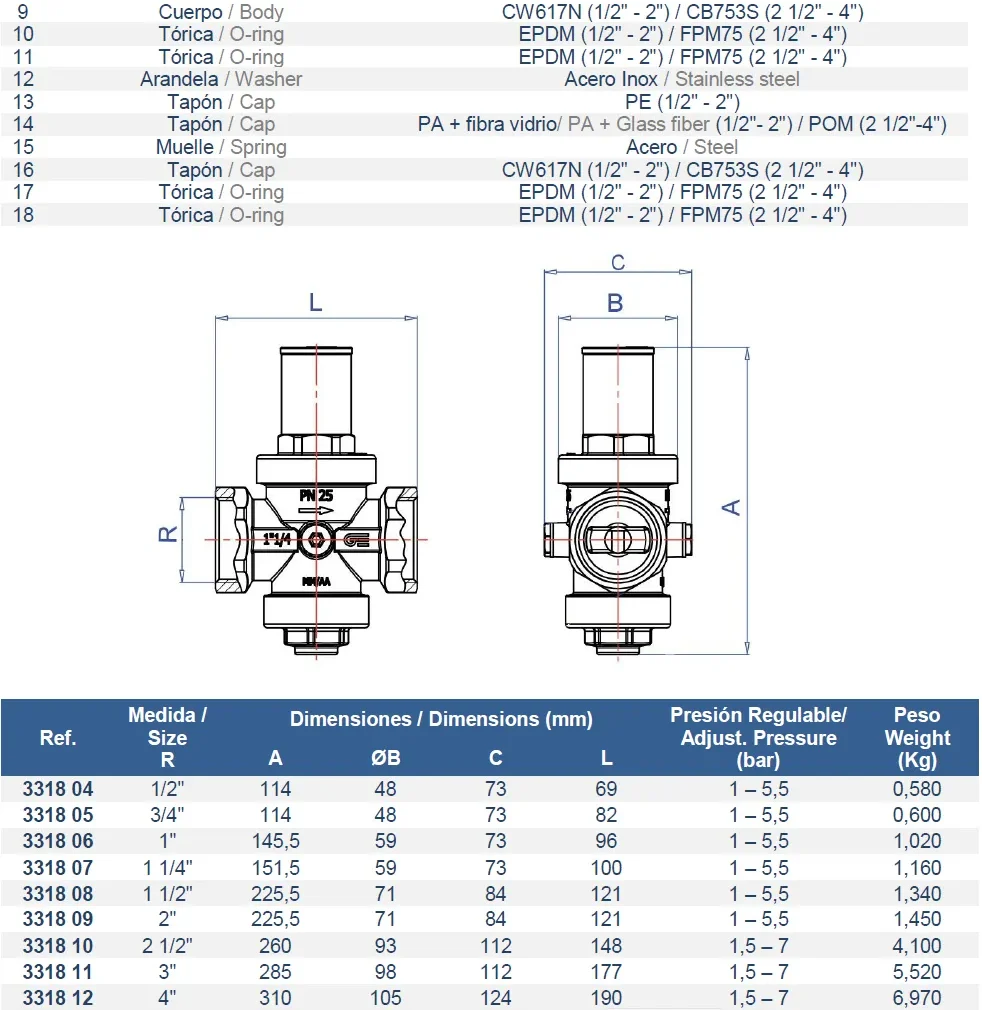

Size: 1/2″ to 2″ (DN 15 to DN 50)

Connection Type: Female-Female (F-F) gas threaded ends according to ISO 228/1

Maximum Inlet Pressure: 25 bar (PN 25)

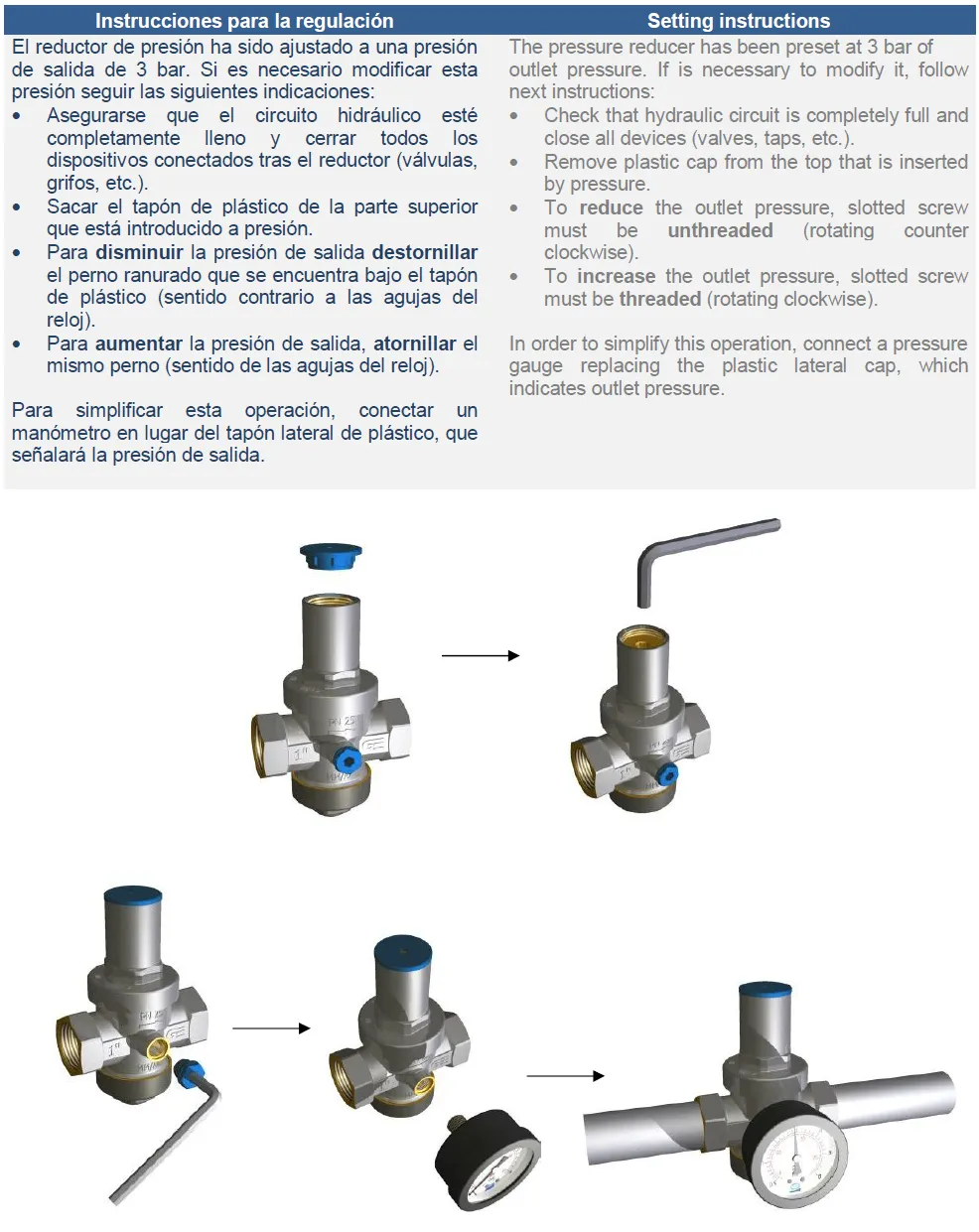

Adjustable Outlet Pressure Range: 1 to 6 bar (Factory preset at 3 bar)

Maximum Working Temperature: 130°C

Gauge Connections: Includes 1/4″ female threaded ports for pressure gauge installation

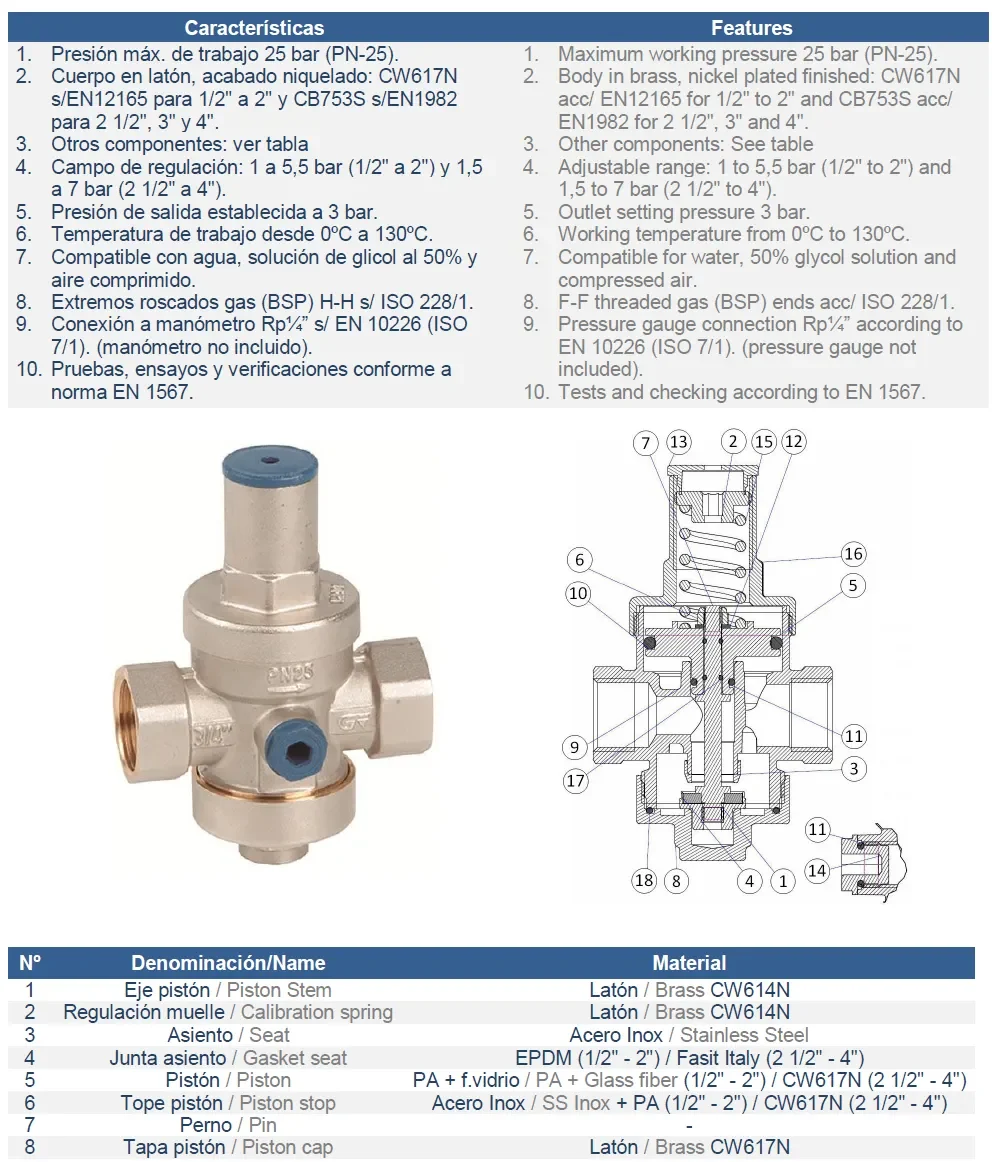

Materials: Brass body (CW617N) according to UNE-EN 12165, stainless steel internal mechanism/shaft, and EPDM/NBR seals
