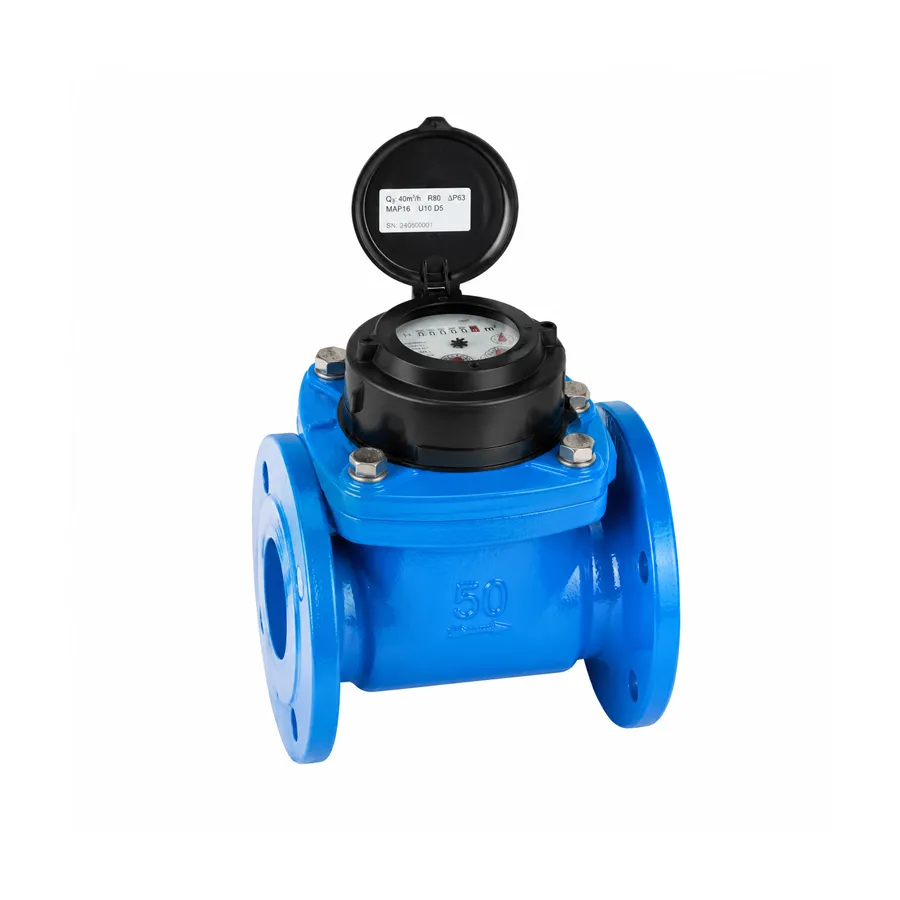

6060 WOLTMANN Water meter with DIN flanges

Size: 2″ to 12″ (DN 50 to DN 300)

Connection Type: Flanged ends according to EN 1092-2 PN16

Maximum Working Pressure: 16 bar (PN 16)

Working Temperature Range: -10°C to 120°C

Materials: Ductile iron body and bonnet (GGG-40 / EN-GJS-400), EPDM encapsulated ductile iron wedge, and stainless steel stem (AISI 420)

Coating: Internal and external bonded epoxy coating for high corrosion resistance

Application: Ideal for water supply, distribution, irrigation, sewage, and water treatment systems
