Description
Application:
– Measuring the total volume of cold portable water passing through the pipeline.
Feature:

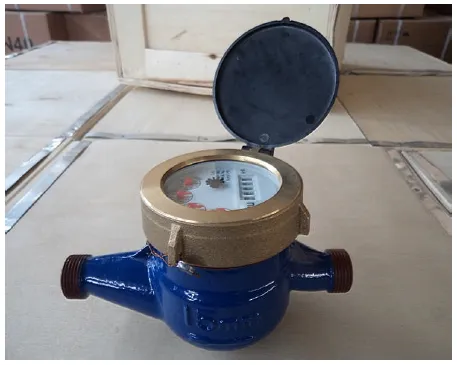

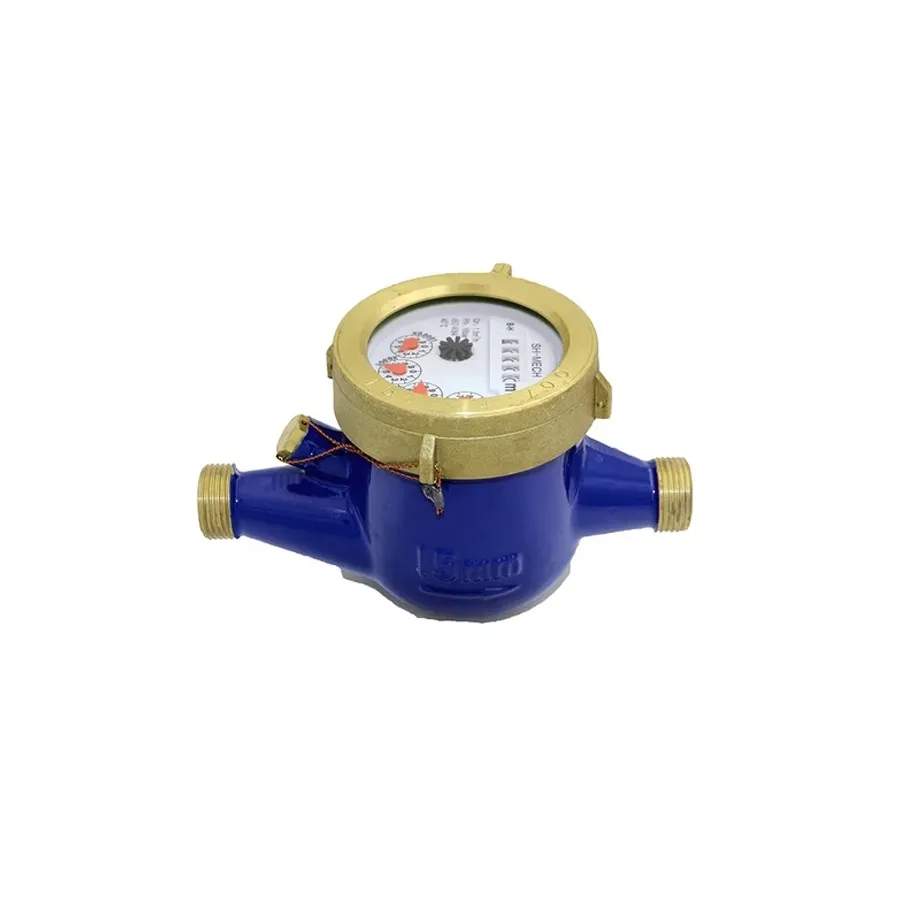

— Multi-jet, dry-dial, easy for maintenance;
— Magnetic drive reliable characteristic, long working life;
— Vacuum sealed register ensures the dial keeps free from fog and frost, keeping the reading clear in long-term service;
— Technical data conform to international standard ISO4064 Class B
Working condition:
Water temperature : 0.1℃ ～ 40℃ for cold water meter.
0.1℃ ～ 90℃ for hot water meter.
Water pressure : ≤ 1.0 Mpa or 1.6 Mpa
Maximum permissible error:
(1) In the lower zone from qmin inclusive up to but excluding qt is ±5%
(2) In the upper zone from qt inclusive up to and including qs is ±2%
Hot water meter ±3%
