uPVC Column Pipes

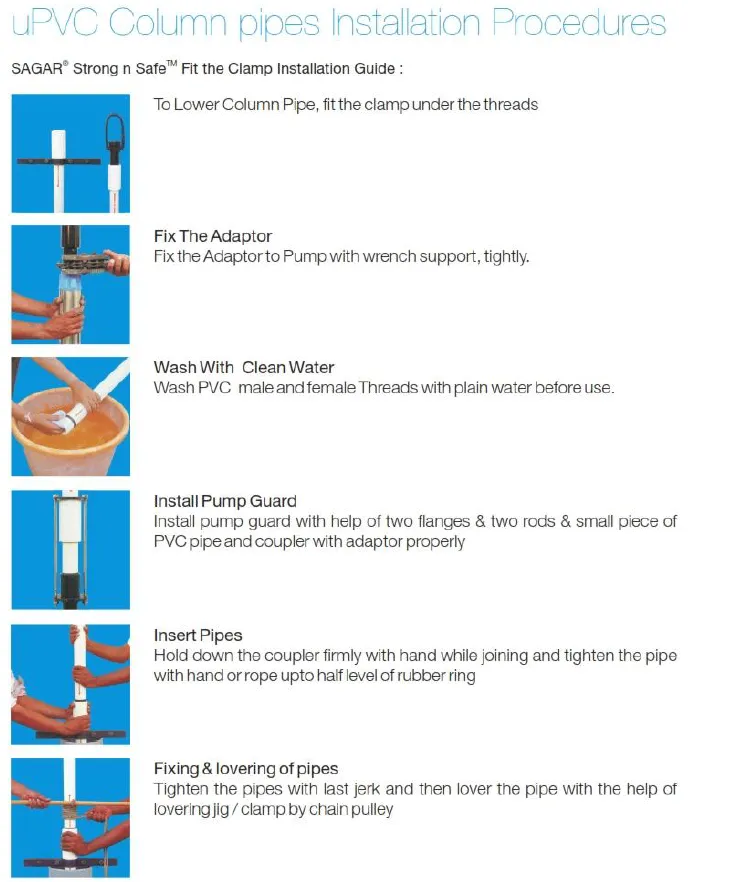

SAGAR 2X SÓLIDO LOCK COLUMN PIPE INSTRUCTION FOR EXTRA PUMP SAFETY

SAGAR has introduced new innovative product of PVC Column pipe with world’s strongest locking system, ever before 2X SÓLIDO LOCK which ensures EXTRA PUMP SAFETY & 2X more life compared to conventional column pipe.

2X SÓLIDO LOCK

The couplers are locked with Freeze lock + Solid engineered plastic wire lock (2X more safety compare to metal) which ensures safety during installation, removal and use of pump.

RUBBER RINGS

An outer rubber ring is provided in the Temporary side of the pipe and an inner rubber ring is provided in the Permanent side of the pipe, which ensures a 100% leak proof joint.

SQUARE THREADS

The joint of pipes have been specially designed with square threads to ensure proper gripping and no chance of slipping. These threads are high friction threads on load, which do not open even on constant forward and reverse torque generated by starting & stopping the pump.

BI-AXIAL ORIENTATION

Bi-axial orientation during column pipe extrusion: Sagar has developed a unique Bi-axial orientation technique used during pipe extrusion, which gives higher drop impact and notch impact strength to the pipes. This orientation technique is a result of constant Research and Development at Sagar only.

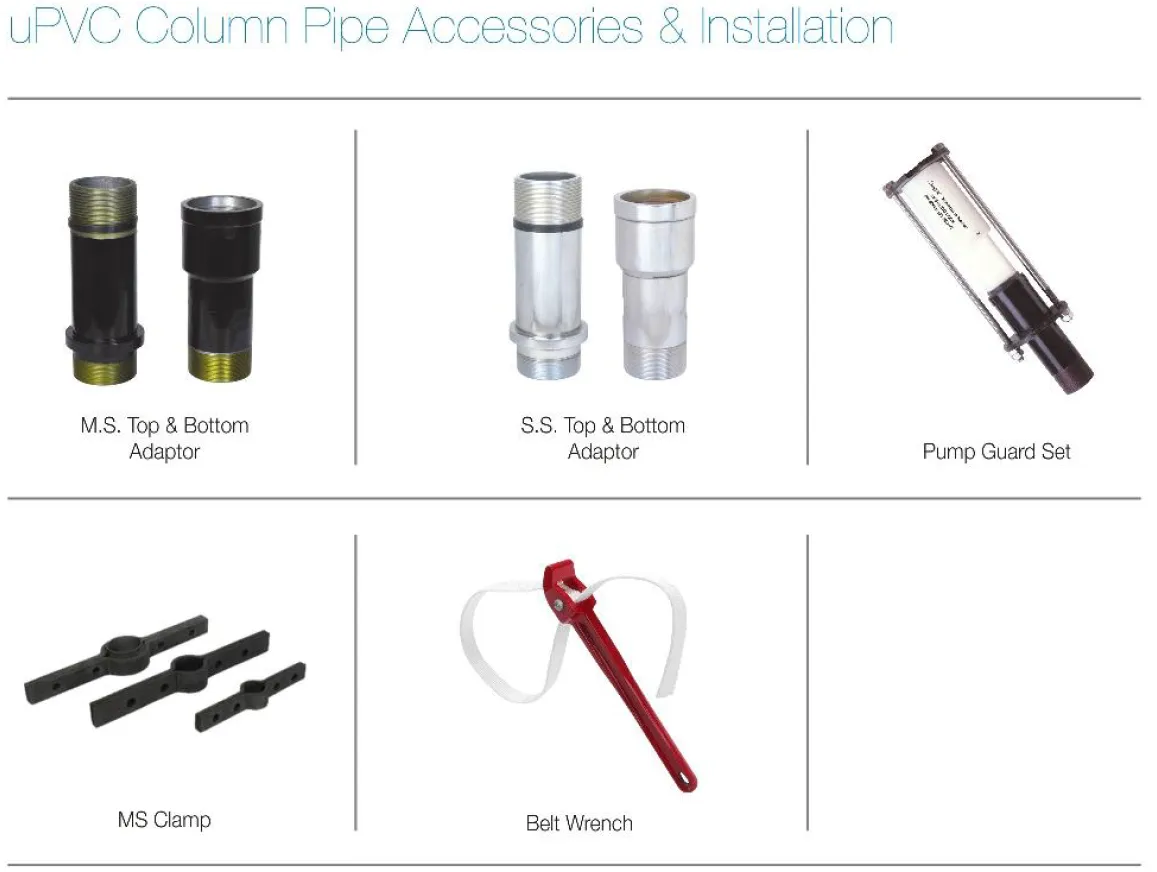

PUMP GUARD & ADAPTORS

Technically designed pump guard ensures that the pump does not fall due to pipe failure in case of excess vibration etc., which in turn saves the borewell.

Application:

Most suitable for use as submersible column pipe
Suitable for use as shiftable pumping system
Suitable for use as pumping mains

Note:

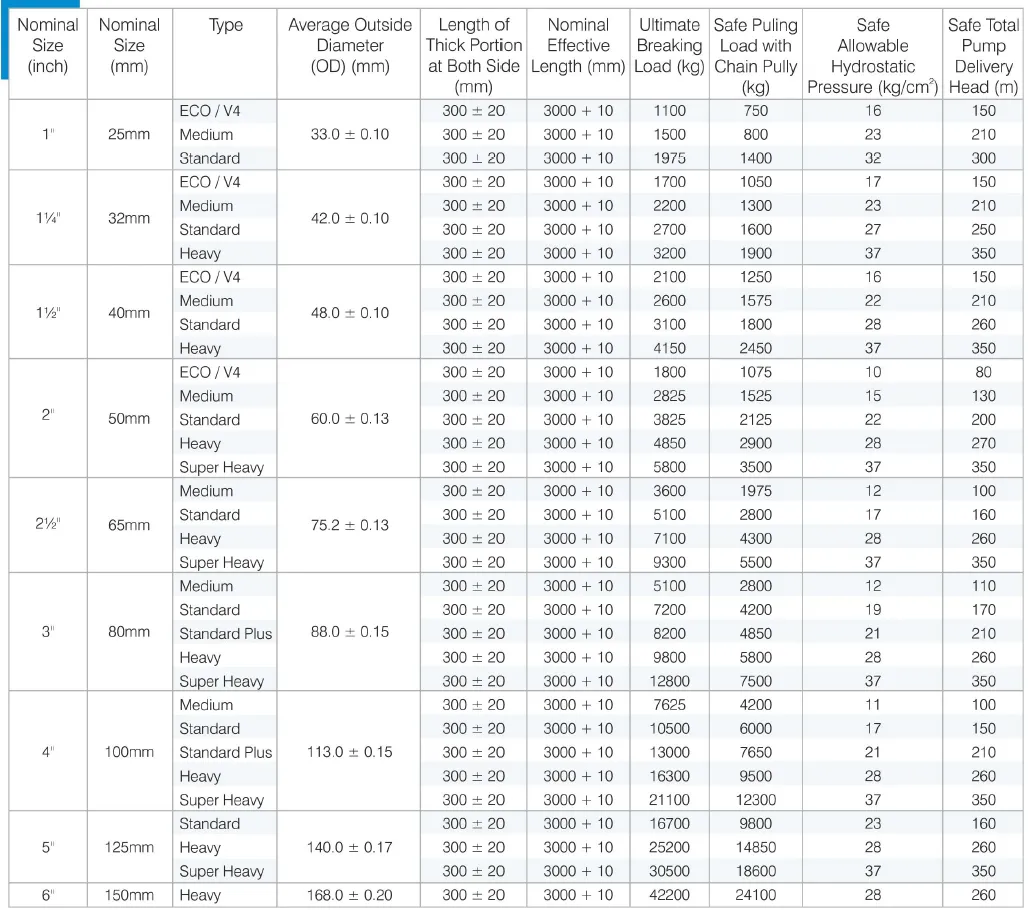

Selection of classes of column pipe depends on capacity of pump along with length of pipe installation

Why PVC For Column Pipes ?

For many years, Metal pipes have been used with submersible pumps to get the water from ground. These pipes are corrode and scaled in their life span and giving troubles to the owner in terms of qty of water and also the pumping cost. PVC has excellent chemical and corrosion resistance to a broad range of fluids. So PVC can give trouble free service for many years.

Secondly, among all thermoplastics also, PVC is the material which can be compounded and modify keeping in the mind of special characteristics required for pipes to be used with submersible pumps. This versatility is not observed with other thermoplastics like Polyethylene (PE). Hence PVC contributes to major usage as piping material globally.

Unique Features

Special Compound

SAGAR Column pipes are manufactured from Special uPVC compound material especially developed by using “JAPANESE TECHNOLOGY” to sustain best column loads, pressure and also encounters the high impact developed during handling, storage and installation. Due to this special compound the TENSILE property of pipe increase which is being tested rigorously using modern testing equipment.

Locking System

SAGAR pipes and couplers are joined with special joining compound which makes lifetime permanent joint without affecting the thread dimensional stability in longer service life.

Bi – Axial Orientation On Pipes

Every pipe is being oriented biaxially during manufacturing which is a very special technique developed by SAGAR. This will really enhanced the mechanical properties of pipes which make sure that the pipes will perform best during application.

100% Hygienic / Safe For Drinking Water

Supply of drinking water is 100% hygienic and safe as being pumped through SAGAR uPVC column pipes manufactured from special METAL FREE compound right from the origin of water source beneath under the earth at maximum depth.

Salient Features

Square Threads :

Unique square threads made with high accuracy provide sufficient grip and additional strength against tensile load. Thus the joint become fairly strong with sufficient factor of safety to take care of load of entire assembly with pump weight. These specially designed threads also make it suitable for easy fitment.

Thin And Thick Process :

The pipe ends are specially given the effect of additional wall thickness by using Thin & Thick process to compensate the strength and load bearing capacity caused due to threading of pipes. The effect of Thin & Thick is given to all sizes considering the working conditions & load factor.

‘O’ Ring :

Specially designed “O” rings provided on the threads makes the joints watertight and absorb pump vibrations.

Step Ring :

for locking of pipe with coupler specially designed working properly because of bearing jam and shaft problem it makes vibration. At that time stepring absorbs makes vibration and stop in damaging the system. So step ring work for both locking and vibration absorber.

Column Pipe Key Properties

Manufactured from high quality virgin PVC compound, also reliable for drinking water
Chemical and corrosion resistance
Long life
Smooth inner wall, no scale build up
Low friction loss, resulting in energy saving, efficient pumping
100% leak proof joint with rubber ‘0’ rings and step ring
Light in weight, easy to transport
Fast and easy installation
Low installation cost. Does not require wrenches, threading tools or solvent cement
No curing period, immediate pump testing possible
High impact resistance
