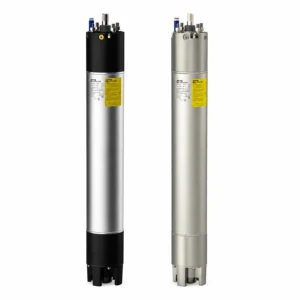

6F FB Submersible Motors
From 4kW to 45kW
FLANGE 6” NEMA
PROTECTION RATING IP68
INSULATION CLASS :
– Y (PVC version)
– F (PE2+PA version)
– F (HT version)
NUMBER OF STARTING EACH HOUR MAX. 20
Installation VERTICAL OR HORIZONTAL (37kW and 45kW motor no horizontal)
50-60Hz VOLTAGE TOLERANCE:
-10% / +10%
[Un (400V-10% = 360V)
(400V+10% = 440V)]
MINIMUM COOLING RATE: 0,15m/s
INSTALLATION BELOW THE WATER LEVEL UP TO 500m
MAX. STORAGE TEMPERATURE -15°C / +60°C
MOTOR CABLE (WRAS, KTW, ACS APPROVED) FOOD GRADE 0.6 / 1kV
F.B.’s 6” rewindable motors are studied for long-term operation in wells with diameters of 6” or greater. Water-lubricated axial and radial bearings ensure a long service life and maintenance-free operation. The motors are pre-filled with a special antifreeze fluid so that they can be stored down to -15°C. A special membrane compensates the pressure inside the motor.
Product Benefits
- Industry-leading efficiency with low operating costs
- Sand protection: the sand-guard and silicon-carbide SIC-SIC mechanical seal protect against sand during operation
- The cast iron motor support has been treated with cataphoresis to prevent corrosion (STANDARD version)
- The “Michell” bi-directional thrust bearing made of a resin and graphite compound can withstand up to 45.000N
- The rotors are balanced and ground along the whole axis
- The stators are generously dimensioned
- The windings are made by hand
- Disassembly and maintenance is exceptionally simple
- The power cable complies with drinking water regulations
- The motors are pre-filled with clear water and propylene glycol
- Ready for installation of a PT100 sensor
