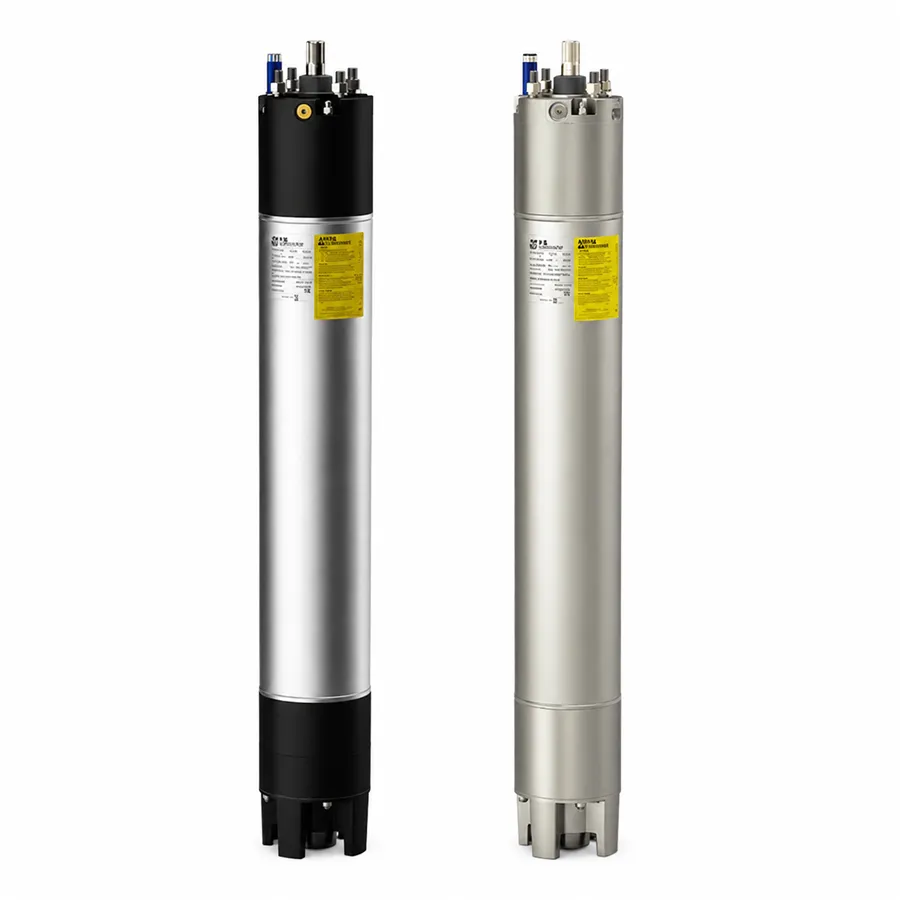

6F FB Submersible Motors

From 4kW to 45kW

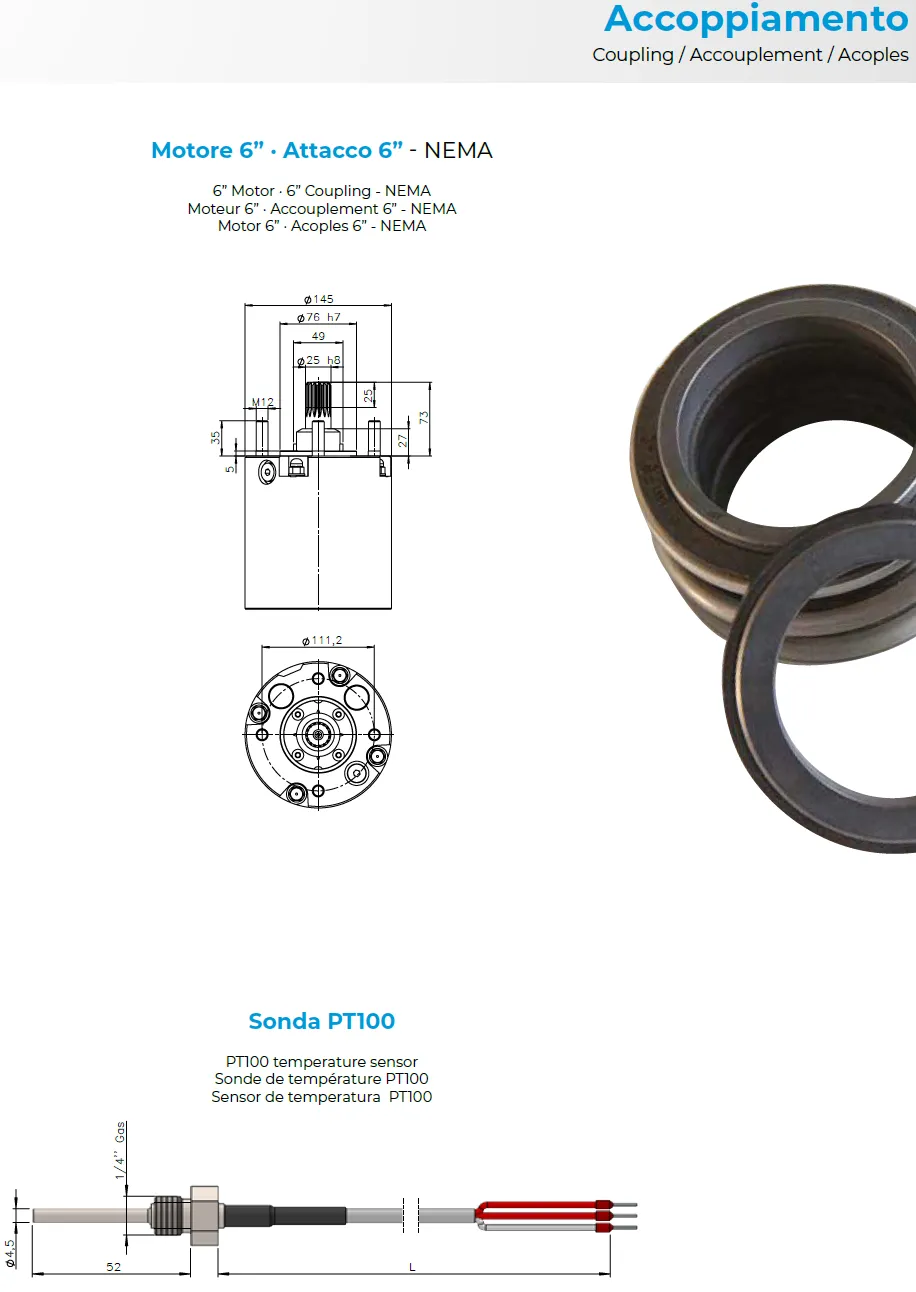

FLANGE 6” NEMA

PROTECTION RATING  IP68

INSULATION CLASS :

– Y (PVC version)
– F (PE2+PA version)
– F (HT version)

NUMBER OF STARTING EACH HOUR   MAX. 20

Installation VERTICAL OR HORIZONTAL (37kW and 45kW motor no horizontal)

50-60Hz VOLTAGE TOLERANCE: -10% / +10%  [Un (400V-10% = 360V)  (400V+10% = 440V)]

MINIMUM COOLING RATE: 0,15m/s

INSTALLATION BELOW THE WATER LEVEL UP TO 500m

MAX. STORAGE TEMPERATURE -15°C / +60°C

MOTOR CABLE (WRAS, KTW, ACS APPROVED) FOOD GRADE 0.6 / 1kV
