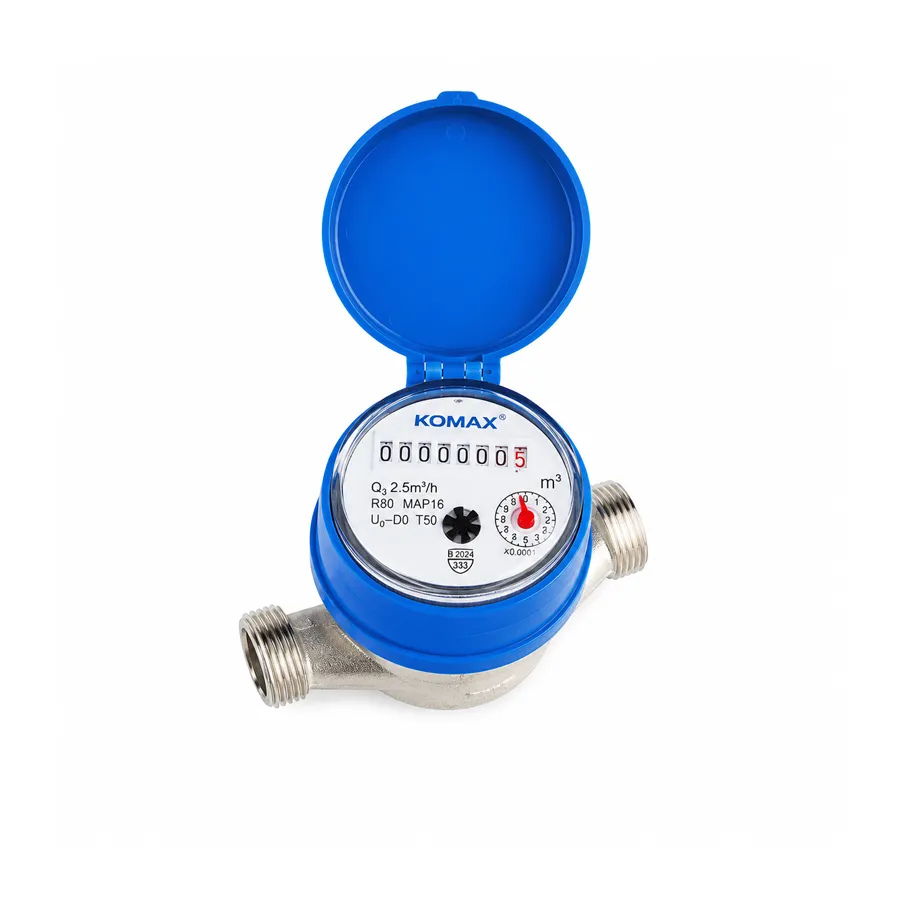

6110C-6120C Single flow water meter (Cold water)

Size: DN 15 (6110C 05) and DN 20 (6120C 06)

Connection Type: Threaded ends according to ISO 228/1, including two connection units threaded to ISO 7/1.

Maximum Working Pressure: 16 bar (PN 16).

Working Temperature Range: Cold water version rated for 0.1°C to 30°C (T30).

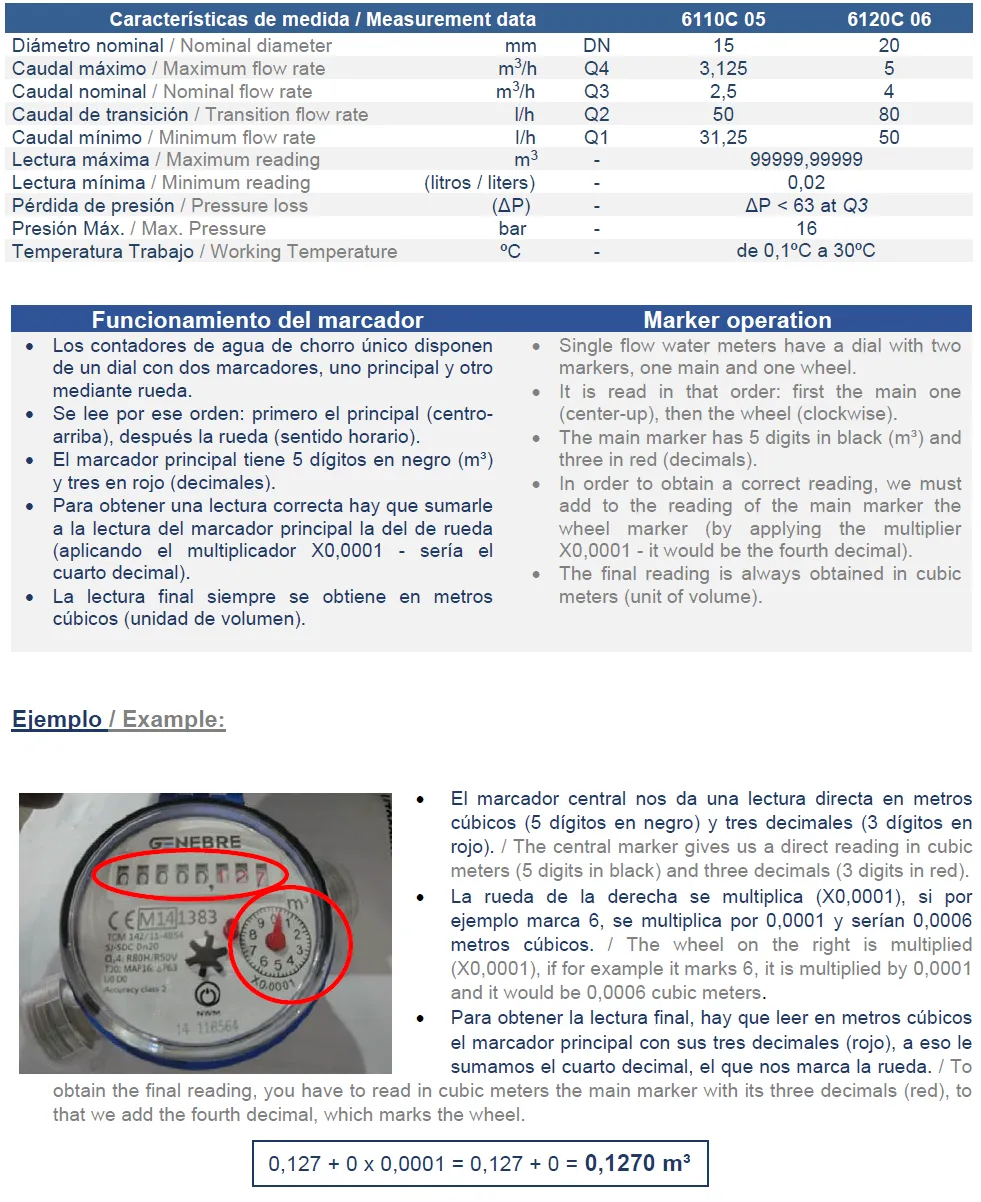

Nominal Flow Rate (Q3): 2.5 m³/h for DN 15 and 4 m³/h for DN 20.

Maximum Flow Rate (Q4): 3.125 m³/h for DN 15 and 5 m³/h for DN 20.

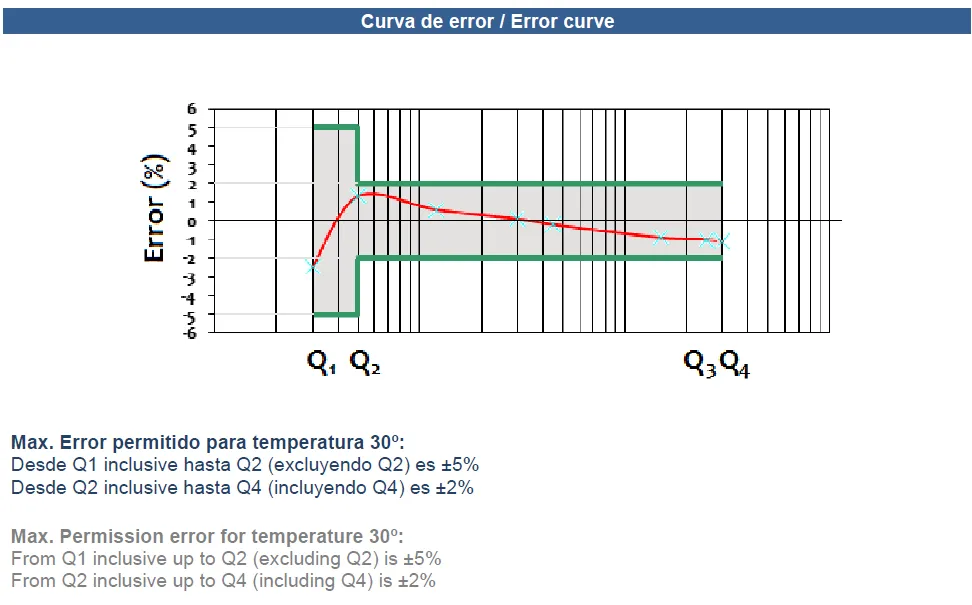

Metrological Class & Ratio: Precision class 2 with a measuring rank of R80 H (Horizontal) or R50 V (Vertical) mounting.

Pressure Loss Class: ΔP63 (Pressure loss less than 63 bar at Q3).

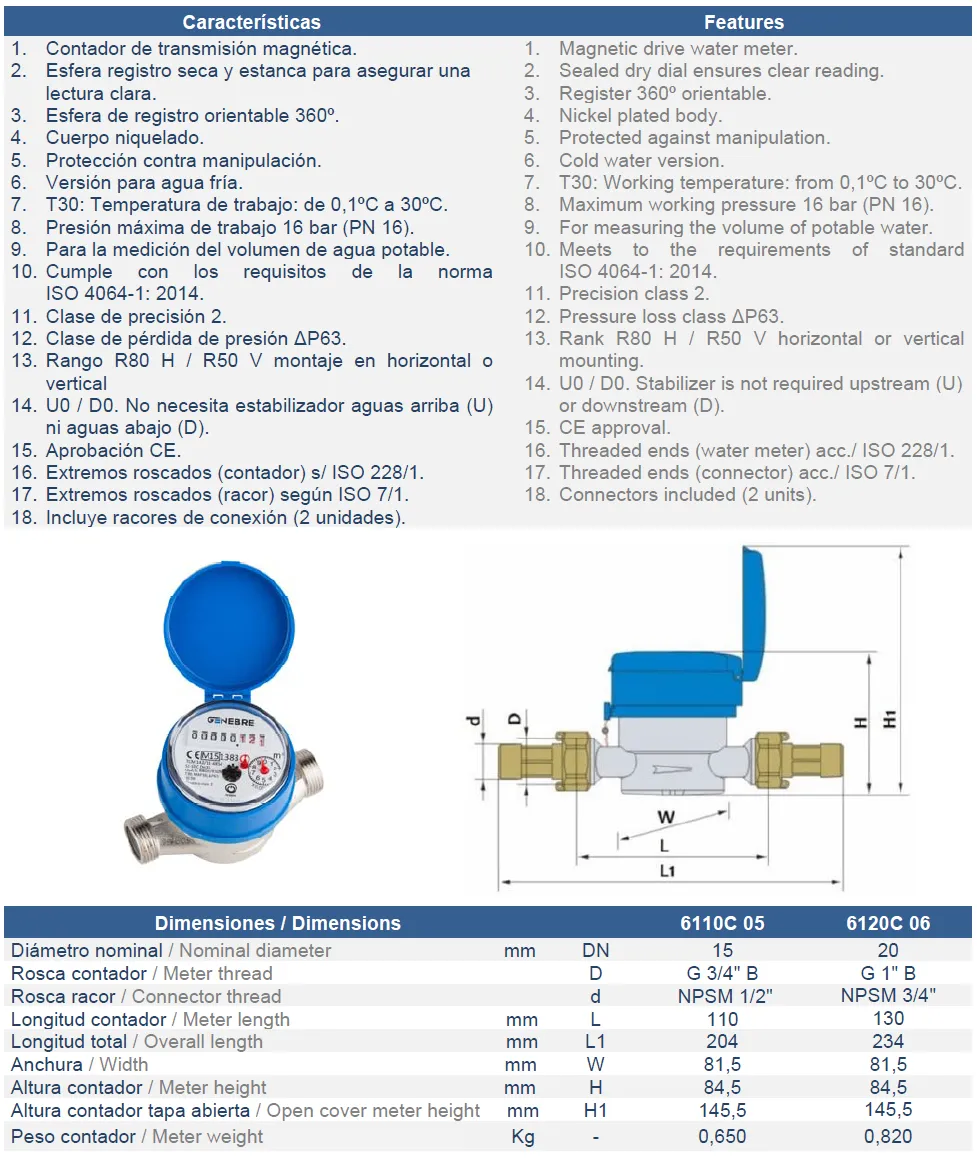

Materials & Protection: Nickel-plated body equipped with anti-tamper manipulation
