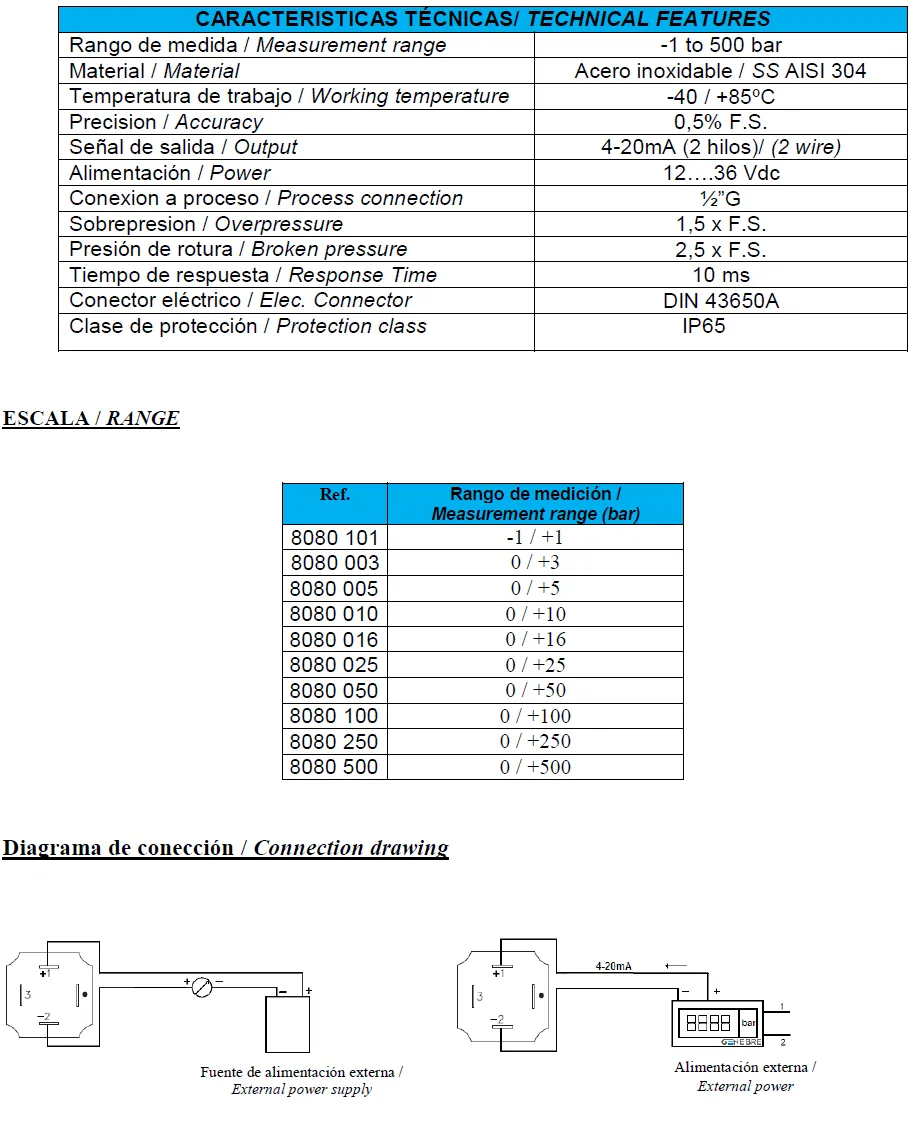

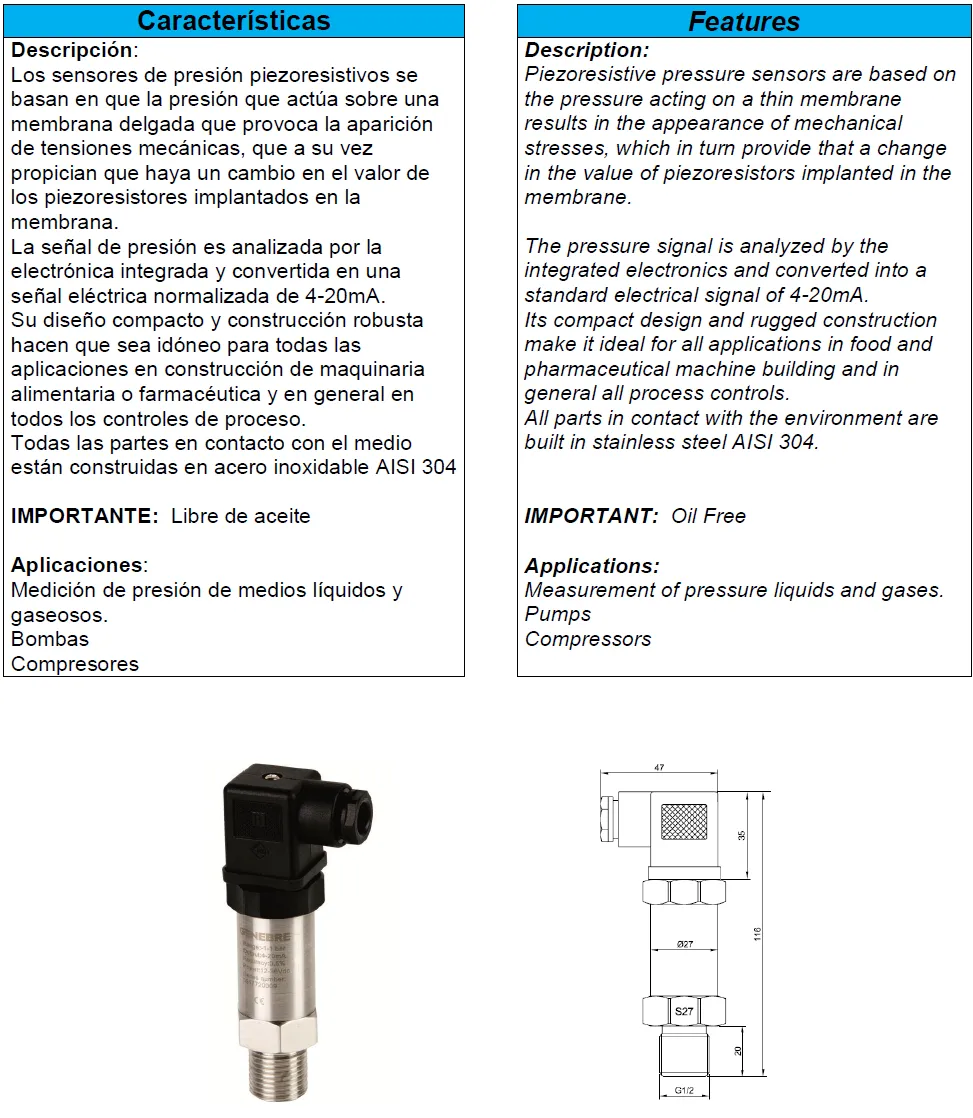

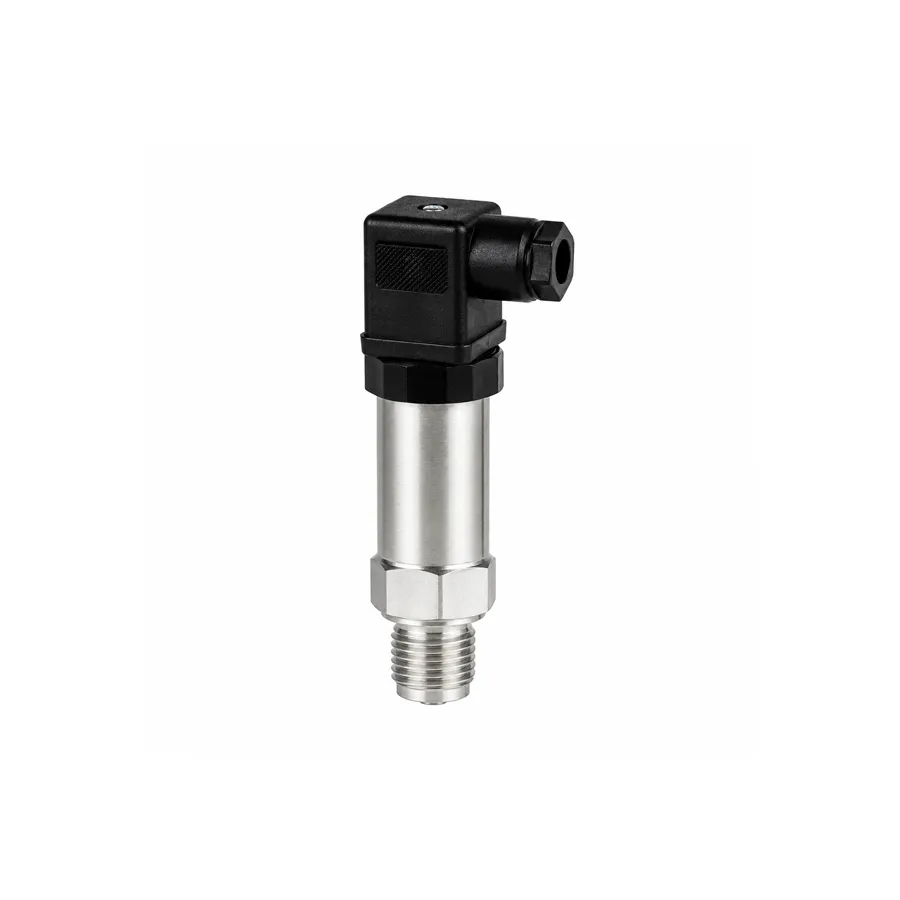

8080 Pressure transmitter

Measurement: Available in multiple scales ranging from -1 bar up to 500 bar

Process Connection: 1/2″ G

Power Supply: 12 to 36 Vdc

Accuracy: 0.5% F.S.

Working Temperature: -40°C to +85°C.

Electrical Connector: DIN 43650A.

Protection Class: IP65

Materials: High-grade AISI 304 stainless steel construction for all parts in contact with the medium and environment.

Safety Limits: Overpressure limit of 1.5 × F.S. and a burst/broken pressure limit of 2.5 × F.S..

Response Time: Fast response time of 10 ms.

Key Features: oil-free.
